전기에게 땋는 소매를 달기
>

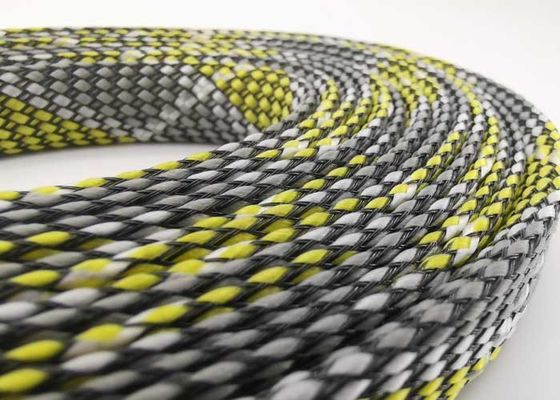

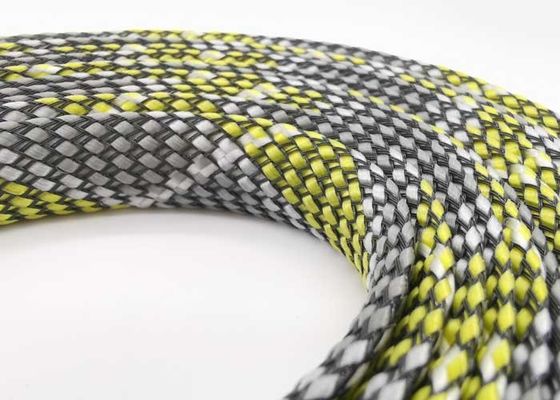

PET PP Yarn Wiring Harness Electrical Braided Sleeving 80mm Yellow Black Color

PET PP Yarn Wiring Harness Electrical Braided Sleeving 80mm Yellow Black Color

브랜드 이름: HYH
모델 번호: 3mm-100mm
MOQ: 교섭할 수 있습니다
가격: 협상 가능
포장에 대한 세부 사항: 500 미터 / 명부. 100 미터 / 명부, 100FT/roll
지불 조건: D/P, T/T
상세 정보
원래 장소:
중국
인증:
REACH, ROHS,Halogen free, UL
재료:
애완 동물
색:
검정색과 빨강과 다른 사람
MOQ:
500METERS
용법:
보호와 미화
특별한:
플레임 지연 소재는 선택될 수 있습니다
확장:
두 배
공급 능력:
99999+METERS+PER 달
강조하다:

80mm Wiring Harness Electrical Braided Sleeving

,

PP Yarn Electrical Braided Sleeving

,

PET Electrical Braided Sleeving

제품 설명

Customized Yellow+Black+White PET+PPyarn Braided Sleeve For Wiring Harness 3.0mm-80.0mm For Wiring Harness To Sort Out

Product Details:

The PET braided expandable sleeving (HYH-BS) is used in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical.The unique braided construction and wide expandability allows quick and easy installation over large connectors and long runs. HYH-BS can be found in applications ranging from small office/home office to high tech wire and cable harnesses.



The wide range of available colors and sizes allows easy and systematic color coding in complex wiring and cabling schemes.



HYH-BS is braided from 10 mil polyethylene terephthalate (PET) monofilament yarns. The material has a wide operating temperature range(-25--+125°C), is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.



PET PP Yarn Wiring Harness Electrical Braided Sleeving 80mm Yellow Black Color 0



Application:



PET PP Yarn Wiring Harness Electrical Braided Sleeving 80mm Yellow Black Color 1



Certifications:

PET PP Yarn Wiring Harness Electrical Braided Sleeving 80mm Yellow Black Color 2

PET PP Yarn Wiring Harness Electrical Braided Sleeving 80mm Yellow Black Color 3





Product Specifications:

1. Width: 1mm - 150mm;


2. Length: 100m - 500m a roll for normal package OR 100ft-250ft a roll for small package


3. The extended range:50% - 100%;


4. Can provide free samples of 5-15 meter.



Product Parameter:

Product Sizes

Size Part Number Expansion Max Expansion Min Bulk Spool Shop Spool Lbs / 100'
1/16" HYH-BS-2 3/32" 3/64" 1,000' 250' 0.22
1/8" HYH-BS-3 1/4" 3/32" 1,000' 225' 0.2
1/4" HYH-BS-6 7/16" 1/8" 1,000' 200' 0.3
5/16" HYH-BS-8 15/32" 5/32" 500' 150' 0.5
3/8" HYH-BS-10 1/2" 3/16" 500' 125' 0.57
7/16" HYH-BS-11 5/8" 7/32" 500 125 0.68
1/2" HYH-BS-12 3/4" 1/4" 500' 100' 0.77
5/8" HYH-BS-16 1" 3/8" 500' 100' 0.95
3/4" HYH-BS-24 1 1/4" 1/2" 250' 75' 1.2
1" HYH-BS-19 1 5/8" 5/8" 250' 65' 1.34
1 1/4" HYH-BS-32 1 3/4" 3/4" 250' 50' 1.6
1 1/2" HYH-BS-38 2 1/8" 1" 200' 40' 1.96
1 3/4" HYH-BS-45 2 3/4" 1 1/4" 200' 30' 2.45
2" HYH-BS-50 3 1/2" 1 1/2" 200' 50' 2.6
2 1/2" HYH-BS-63 3 5/8" 1 3/4" 200' 50' 3.8
3" HYH-BS-76 4 3/4" 2 1/2" 100' 50' 3.8

1,Other specifications can also be customized.

2,Because the sleeving has extendable.Therefore, there is a default allowable error range of 1mm-2mm.
The larger the size, the larger the margin of error.

3,Please inquire for details according to each specification.



Storage:

1.The PET braided sleeving are suggested to be stored in the warehouse with temperature about 23℃, if in hot season, putting on air conditioning or other solution to cool down the warehouse should be taken.



2. The PET braided sleeving storage period is 12months. Please try to use up within 12 months while they are at perfect condition.



Packing And Shipping:



1. Over the sea: The sleeves are suggested to be shipped with reefer container. If less than container loading, anti-heat material is advised to be used for packing to protect the films.



3. Container over the land: The truck with electronic power should be used for moving the container between port and factory to keep the reefer container working.



FAQ:

1. What is your MOQ?
Normally our MOQ for each size is 1000 meters. If you think it is too much, we can discuss according to your requirement in details.

2. Can you offer free sample?
Yes, we can provide free samples of 5m - 15m.

3. What is your delivery time?
We will deliver in 15-20 work days.

4. Can you accept mixed products in one container?
Yes, we accept for sure.

Tag:

cotton braided sleeving, tinned cooper braided sleeving,Stainless steel braided sleeving.

PET PP Yarn Wiring Harness Electrical Braided Sleeving 80mm Yellow Black Color 4



Also contact an account representative for relevant details regarding custom orders. See the web for the complete list of colors
